J&M Drills

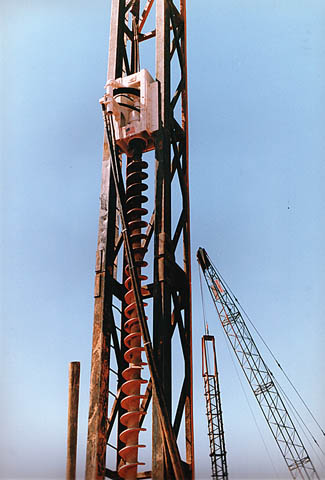

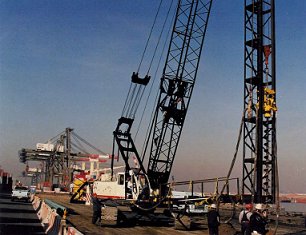

J&M manufactures a full line of drills for pile pre-drilling and augered cast-in-place pile work. We also provide auger flighting made by K&D Equipment.


Model Torque(Ft-lbs) Speed(rpm) Crowd Force(lbs) Weight(lbs) Power Unit(hp) Power Unit Drive Pressure(psi) Power Unit Operating Speed(rpm)
760 7,000 60 20,000 1,400 108 4,500 2,400
1255 12,000 60 35,000 3,000 200 2,500 2,400
3060 15,000 65 35,000 3,000 220 5,000 2,600
3060 21,000 60 35,000 3,000 335 3,500 2,100
3060 30,000 40 35,000 3,000 335 5,000 2,100
35AT 35,000 85 35,000 3,000 335 5,000 2,100
5050 50,000 50 80,000 4,400 335 5,000 2,100
55AT 55,000 85 80,000 4,400 335 5,000 2,100


If you cannot find the information you need, please call J&M or send us an email at:
webmaster@apevibro.com
